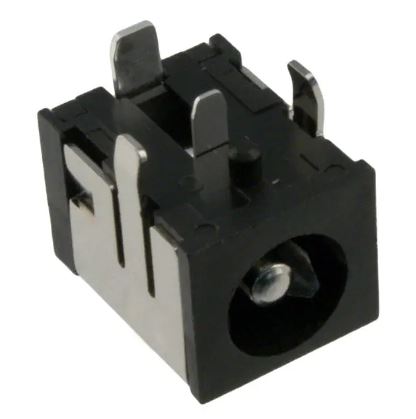

PJ-063AH Jack COM41

Description2.0 x 6.5 mm, 8.0 A, Horizontal, Through Hole, Shielded, Kinked Pins, Dc Power Jack ConnectorTYPEDESCRIPTIONSELECTMfrCUI DevicesPackageBagProduct StatusActiveConnector TypeJackGenderMaleIndustry Recognized Mating Diameter2.10mm ID (0.083″), 5.50mm OD (0.217″)Actual Diameter0.079″ (2.00mm ID), 0.256″ (6.50mm OD)Number of Positions/Contacts2 Conductors, 2 ContactsInternal Switch(s)Does Not Contain SwitchMounting TypeThrough Hole, Right AngleTerminationSolderShieldingShieldedFeaturesBoard GuideVoltage – Rated24VDCCurrent Rating (Amps)8 AMating Length/Depth0.348″ (8.85mm)Material Flammability RatingUL94 V-0Operating Temperature-25°C ~ 85°CContact Material – PlatingSilverHousing MaterialPolybutylene Terephthalate (PBT)Contact MaterialBrass, Copper AlloyBody ColorBlack Package includes: 1×PJ-063AH jack
