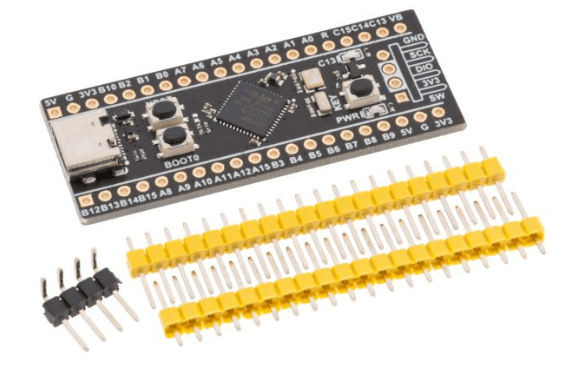

STM32F401CCU6 STM32F4 Black Pill BRD44, R36

DescriptionThe New  STM32F401CCU6 STM32F4 Black Pill Development Board with STM32F401 series chip with higher clock frequency, floating-point arithmetic module, more internal SRAM (64KB), more Flash (256KB) and enhanced peripherals. Also  STM32F401CCU6 STM32F4 Black Pill also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.FeaturesOn-board Mini USB interface, you can give the board power supply and USB communication. test indicator LED (On C13 io) reset button and power indicator LEDBoot0 Configuration Push-ButtonOn-board 100ma 3.3V RegulatorAll GPIO are led out and the names of the pins are markedAfter soldering the headers, you can directly plug the board onto the breadboardPackage includes: 1×STM32F401 Black pill Other specificationsCPU Part Number: STM32F401CCU6Core: ARM 32 Cortex-M4 CPU.Debug mode: SWD (can be programmed with ST-LINK V2)CPU Internal Maximum Clock: 84MHzExternal Clock Source: 25MHz crystal256K flash memory, 64K SRAMConnectivity: I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTGPeripherals: Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT2.0-3.6V power, I/OUSB Connector Type: Type CReset(POR/PDR)Size: 5.3cm x 2.0cmSTM32F401 Black pill pinout
