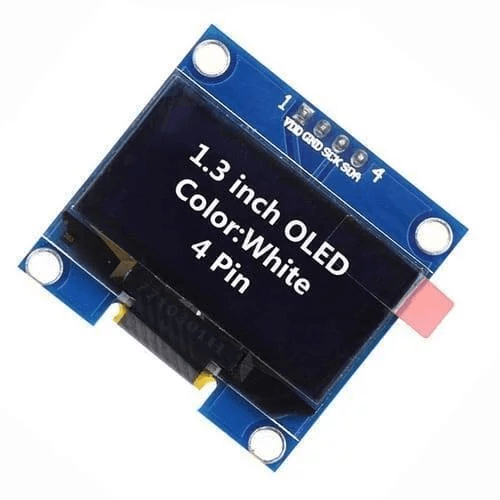

1.3 Inch OLED White Display 128×64 – I2C (SH1106) COM42, R14

The 1.3 inch OLED white display 128×64 I2C module is a compact, high-contrast screen powered by the SH1106 driver. It offers clear white text and graphics and works with popular microcontrollers like Arduino, ESP8266, ESP32, and Raspberry Pi.Unlike LCDs, OLEDs are self-emitting and do not require a backlight, resulting in higher contrast, wider viewing angles, and lower power consumption—making it ideal for battery-powered projects.This module commonly uses the SH1106 driver (SSD1306-compatible), which is supported by several open-source display libraries like U8g2, U8glib, and Adafruit_SSD1306.SpecificationPropertyValueDisplay TypeOLED, Monochrome (White)Display Size1.3 inch diagonalResolution128 x 64 pixelsInterfaceI2C (SDA, SCL)Driver ICSH1106 / SSD1306 compatibleOperating Voltage3.3V to 5VOperating Temp-40°C to 70°CDisplay Area~29.42mm × 14.7mmModule Dimensions~35mm × 33mm × 5mmViewing Angle>160°Power ConsumptionUltra-lowPin definitionsPinLabelDescription1GNDGround2VCCPower (3.3–5V)3SCLI²C Clock4SDAI²C DataHardware RequiredItemDescription1.3″ OLED Display ModuleWhite monochrome, 128×64, I²C (this product)Microcontroller BoardArduino Uno/Nano/Mega, ESP8266 (D1 Mini), ESP32, etc.Breadboard (optional)For quick prototypingJumper WiresMale-to-Female or Male-to-Male to connect pinsUSB Cable & ComputerTo power/program your board via the Arduino IDE3.3 V Regulator (optional)If your board lacks a 3.3 V output for delicate modulesQuick Start Kit: Arduino Uno 4 jumper wires this OLED Arduino IDE with U8g2/Adafruit_SH110X installed.
